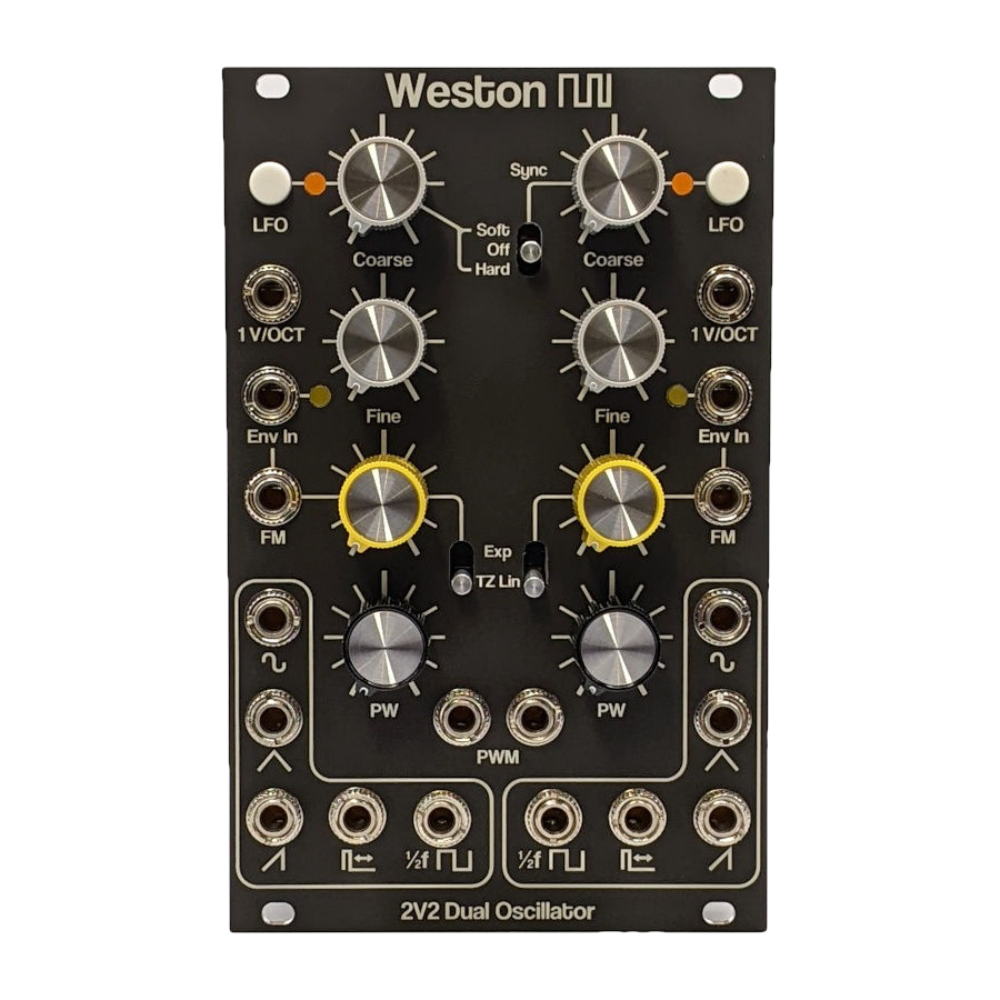

You can’t have too many VCOs! 2V2 Is a dual analog voltage controlled oscillator module in a 16HP Eurorack form factor. 2V2 contains 2 identical triangle-core analog VCOs which are both capable of through-zero frequency modulation. The right VCO can be hard or soft-synced to the left VCO. Each VCO has a complement of 6 outputs and can be switch to low-frequency operation and act as a voltage controlled or free-running LFO.
Features
- 2 independent analog VCOs with TZFM and Exponential FM
- Hard and soft sync between the 2 VCOs
- Each FM input has a VCA to shape FM amount via envelope or other signal
- Great tracking and thermal stability
- Each VCO has sine, triangle, PWM, sawtooth, and sub-octave square wave outputs
Specifications
- Width: 16hp
- Depth: 25mm
- Power: +115mA / -85mA
