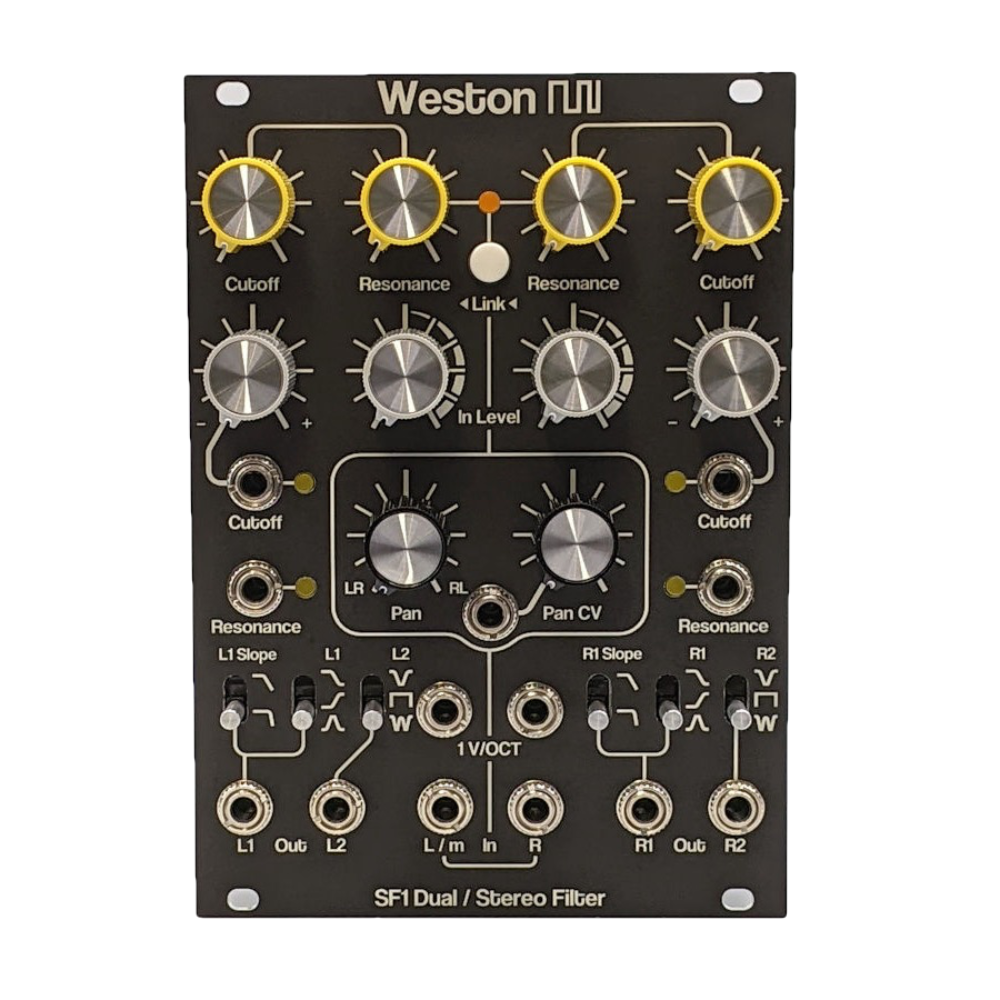

Weston Precision Audio SF1 Eurorack Dual VC Filter Module

£359.00 inc. UK VAT

£299.17 ex. VAT

KLARNA Finance now available (£250-£1K)

In stock (can be backordered)

(Bear in mind prices on the site are shown including UK VAT. After entering your shipping address at checkout prices will update to show the correct taxes for your location. If purchasing internationally, VAT, handling fees, and import duties will potentially be due)






Product Info


A flexible VCF times two. SF1 is a dual voltage controlled filter (VCF) module designed to be used either as a pair of identical, but separate VCFs, or as a stereo filter. 9 possible output responses are available from the 2 concurrent outputs for each filter/channel. “Link” mode is ideally suited for stereo applications and allows both filter’s cutoff, resonance, and cutoff/resonance CV to be simultaneously using the left-hand controls/inputs. The outputs are routed to a CV-controlled panner/crossfader, allowing modulation of the spacial location of each filter.

Features

  • 9 possible output responses for each filter/channel (HP, LP, and BP both 12dB/oct and 24dB/oct available from L1/R1 out & Notch, All-Pass, and Phaser available from L2/R2 out)
  • Attenuverters with center detent for frequency CV ins
  • Audio ins contain overdrive when turned past center
  • Self-oscillation capability for using as oscillator(s)
  • Voltage-controlled panning output stage which can be modulated into audio frequencies

Specifications

  • Width: 18hp
  • Depth: 25mm
  • Power: +120mA / -120mA

Manufacturer product page here.
Product manual here.
