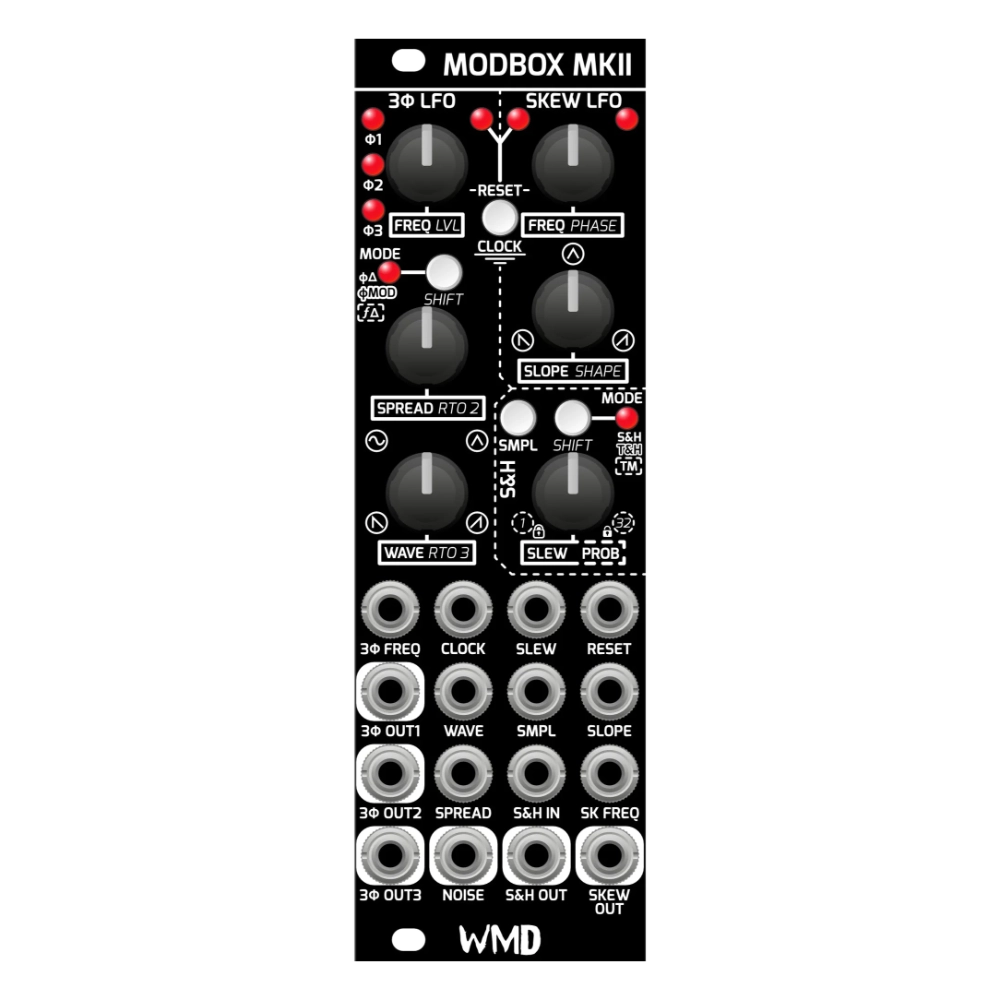

Modbox MKII is a dual-LFO and multifunction utility module combining complex modulation, sample & hold, probabilistic sequencing, and analog noise generation in a compact and performance-oriented design. Building on the legacy of the original WMD/SSF Modbox, the MKII expands the concept with more depth, flexibility, and musical control.
At the heart of the module are two highly versatile LFOs — Three Phase LFO and Skew LFO — designed for everything from subtle movement to complex rhythmic modulation. They both support clock sync, reset, 1V/oct tracking, and audio-rate operation.
Modbox MKII also includes a digital Sample & Hold / Turing Machine section with integrated slew, track & hold mode, and a probabilistic 32-step Turing-style sequencer for evolving modulation patterns. Probability and loop length can be adjusted directly from the interface.
Features
- 3-phase LFO with phase, modulation, and frequency-spread modes
- Skew LFO with waveform morphing and curve shaping
- Clock sync, reset, ratio control, and intelligent synchronisation behaviour
- 1V/oct tracking and audio-rate operation for both LFOs
- Digital Sample & Hold with Track & Hold mode
- Integrated probabilistic 32-step Turing-style sequencer
- Adjustable slew, probability, and loop length controls
- Integrated analog white noise source
Power: +12V ??mA / -12V ??mA
