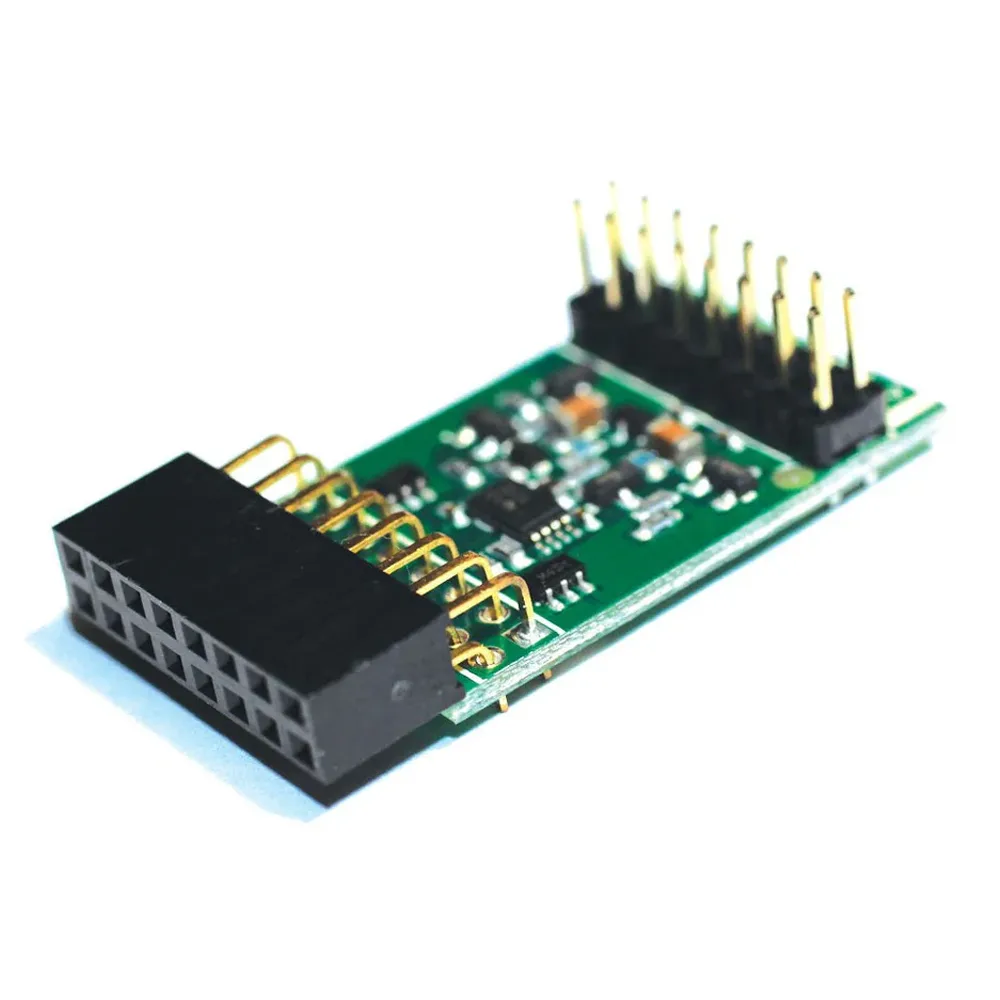

WMD Soft Start Inline Power Buffer
An inline buffer module that prevents power-up issues by delivering a 400ms delay to ±12V rails while passing 5V immediately. Handles up to 500mA per rail with reverse polarity protection. Simply plug between your power supply and high-current modules for consistent, reliable startup every time. Compact 1.5″ x 1″ design passes CV/gate signals. Professional-grade power handling solution for modular synthesizer systems.
Features
400 ms delay of power to both +-12V rails
Can handle 500mA per rail
Does not delay 5V rail
Passes CV and gate signals
Reverse polarity protected
Specs:
Power Handling: +12V = 500mA; -12V = 500mA
Size: 1.5″ x 1″
Depth: 0.5″
Plug female end directly into power distribution and the other into your ribbon cable.
-12V rail is labeled. Put red stripe towards indicator.
