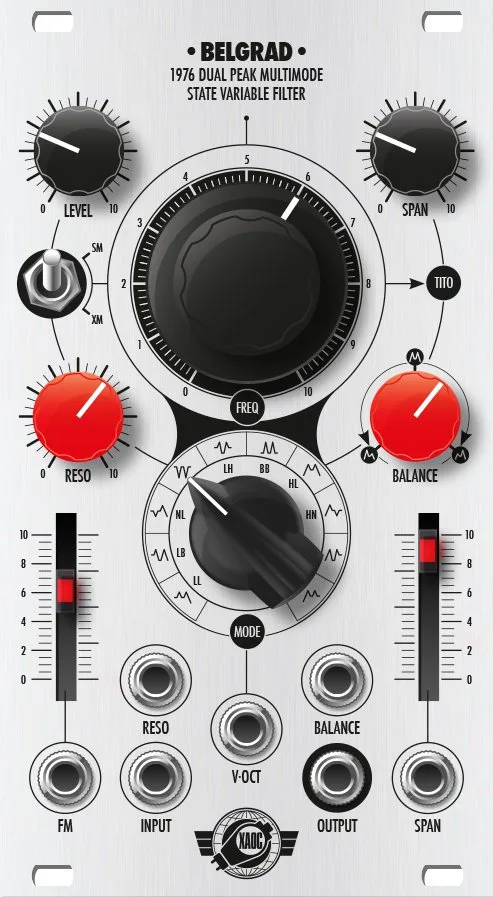

Belgrad is our first all-analog voltage controlled filter module which—on par with our other modules—brings something new to the table. While it can be used as a traditional VCF for “academic” subtractive synthesis, we guarantee countless hours of exciting timbral explorations thanks to its unique character, flexibility, and features. The most prominent feature is that it offers a multitude of frequency responses with two resonant peaks.
Features
- All analog, dual core filter design
- 10 distinct frequency responses
- Wide tuning range, approx. 4hz to 28kHz
- Low noise audio path
- Voltage controlover the resonance and peaks balance
- Nonlinear feedback and cross-modulation
- V/octave input
- Adjustable input overdrive
Specifications
Width: 14 hp
Depth: skiff friendly
Power: +45mA / -42mA
