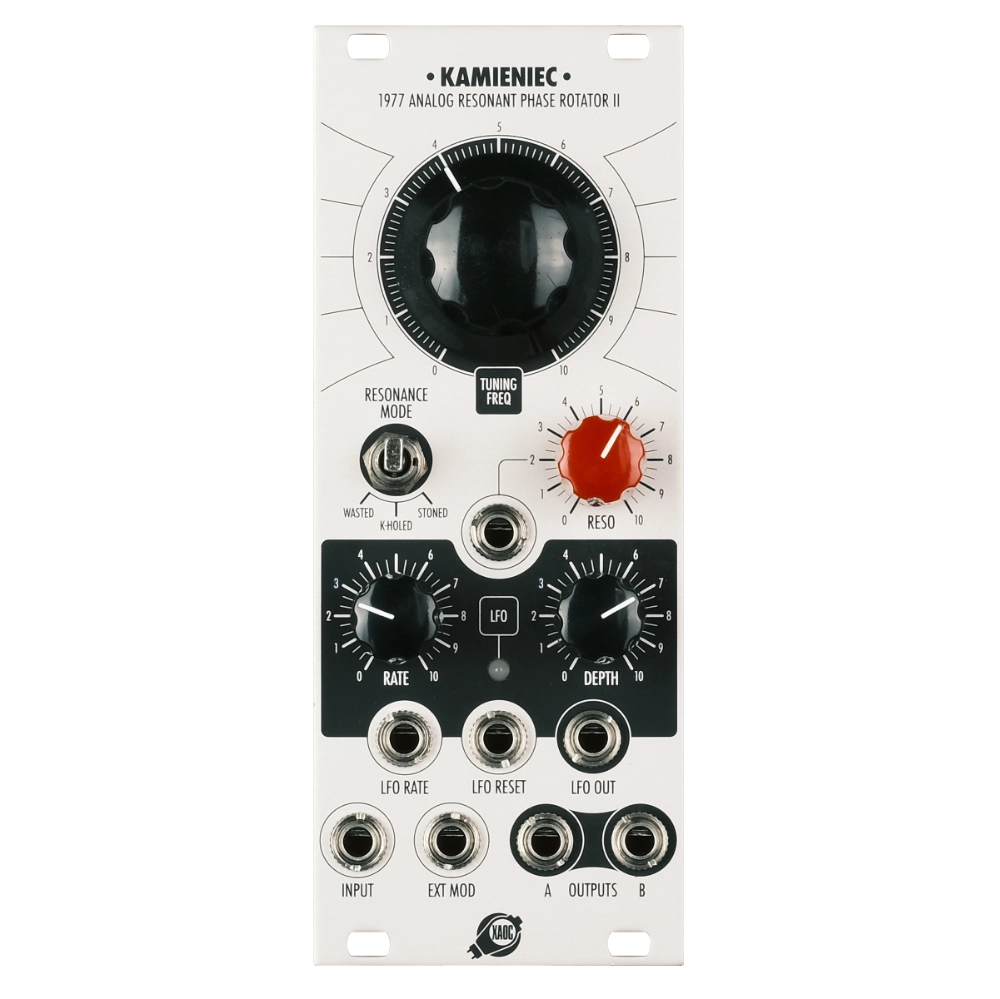

Kamieniec II is an updated and extended revision of Kamieniec – Xaoc Devices’ analog module inspired by a range of classic phaser effect units from the 1970s.
Kamieniec II shares the basic specifications with its predecessor: 4 and 6-stage outputs, built in triangle LFO (with a separate output in the true modular spirit), manual resonance control (up to extremely high values), and spicy feedback routing modes. It is a truly new beast with redesigned circuitry and new features, such as voltage control over resonance, a third feedback mode, and an LFO reset input.
The Kamieniec II is fully compatible with the original Kamieniec, so you can easily mix and match both generations of the module should you develop a craving for more stages.
Want even more stages without sacrificing precious HP in your case? We’ve got you covered. Enter the Allpass Expansion – an optional circuit board installed at the back of Kamieniec II. It adds up to 16 sweepable stages for a total of 22 (!), making Kamieniec II one of the most multidimensional and versatile analog phasers available in Eurorack.
Features
- Analog 4/6-stage phaser inspired by the 70s classics
- Simultaneous four and six-stage outputs
- Voltage controlled resonance
- Onboard voltage controlled wide range syncable LFO
- Additional external modulation input
- Independent LFO output
- Three feedback modes
- Chainable for multi-stage phasing
- Power: +12V 60mA / –12V 60mA
