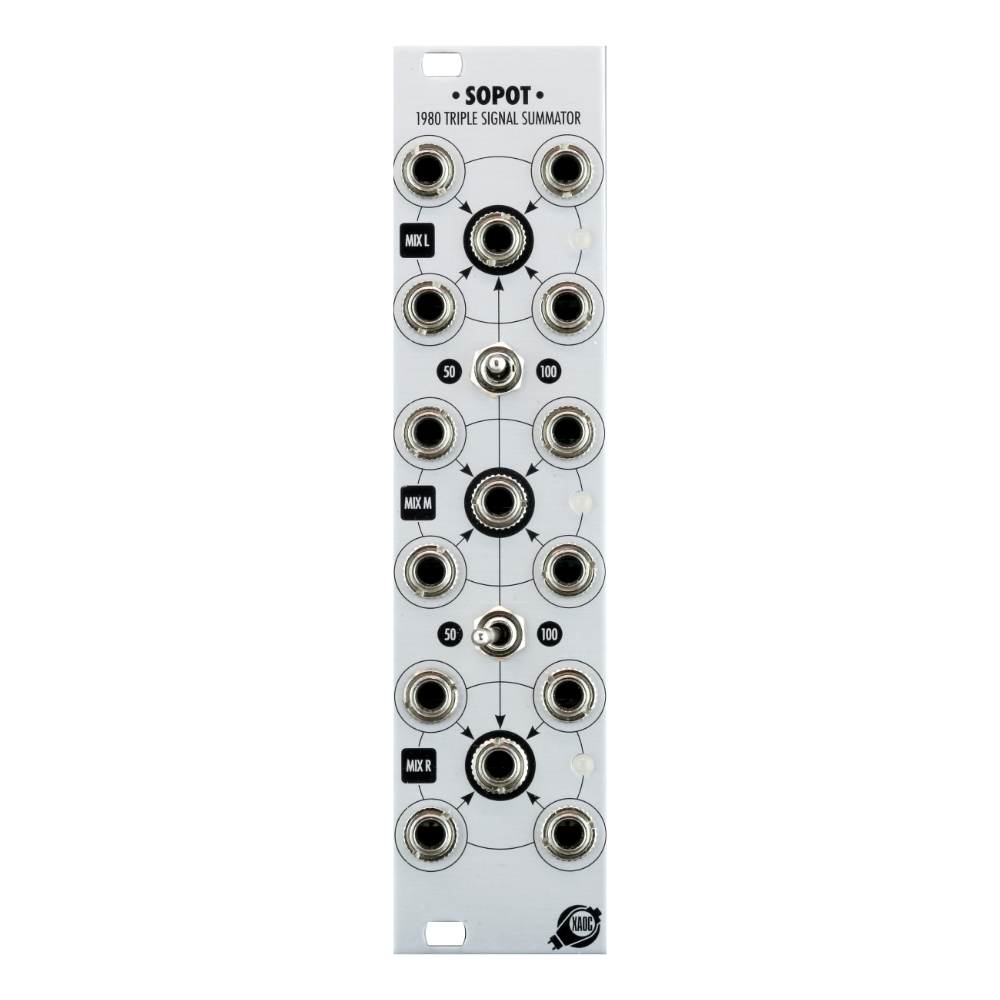

Sopot is a compact utility module handy when the need arises to sum multiple stereo and mono sound sources (up to four signals for each section).
It is a triple summing mixer featuring three signal adding sections with the middle one optionally fed to the top and bottom ones. The contribution of the middle section is switchable between 0%, 50%, and 100%.
Each of the summing sections is built with high quality audio opamps and features a soft clipping circuit for nice saturation. Gain can be optionally reduced to -12dB in order to allow summing of hot signals.
Features
- Three independent summators 4:1
- Middle section normalled to the upper and lower ones
- Gain attenuations for the normalization
Specifications
- Width: 6HP
- Depth: 30mm depth (including ribbon cable bracket)
- Power: +12V: 30mA / -12V: 20mA
