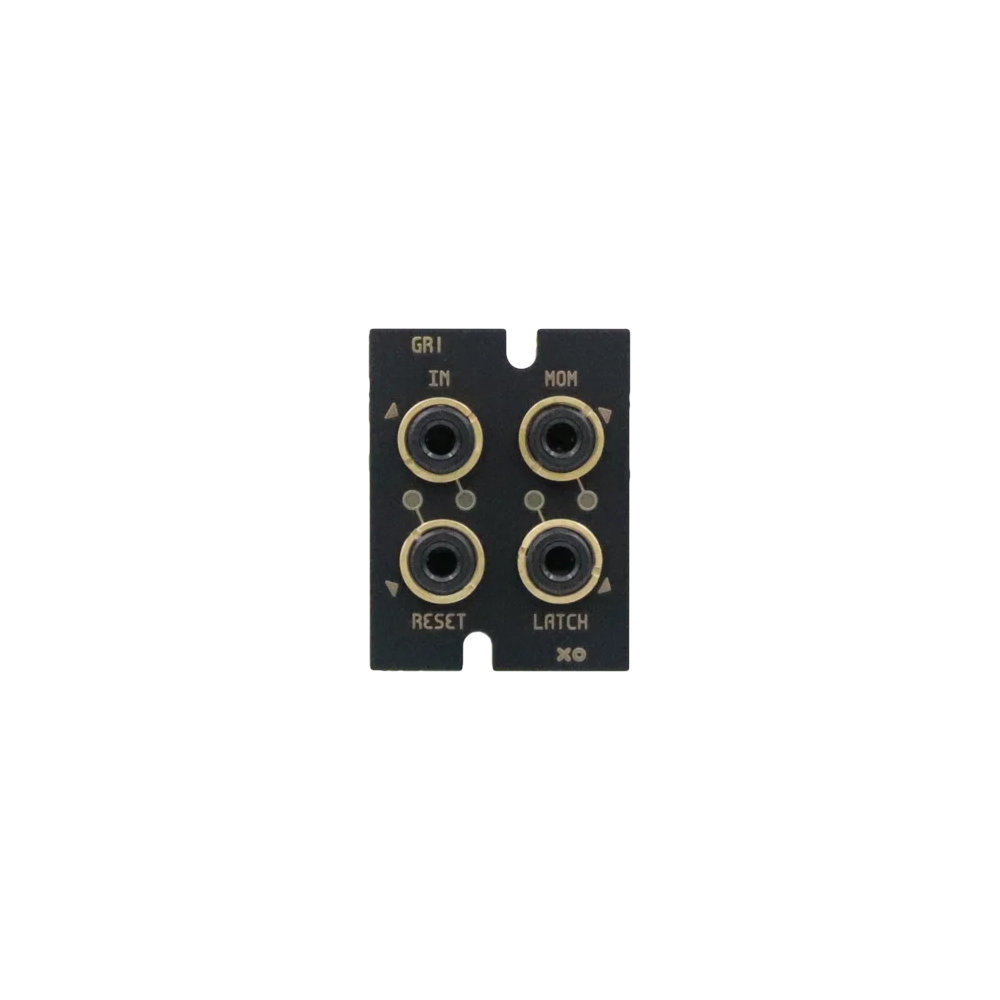

XODES GR1 Eurorack Single Gate Randomizer Module (1U)

£59.00 inc. UK VAT

£49.17 ex. VAT

In stock (can be backordered)

(Bear in mind prices on the UK site are shown including UK VAT. After entering your shipping address at checkout prices will update to show the correct taxes due to us based on your location. If purchasing internationally, VAT, handling fees, and import duties will potentially be due on delivery)





Product Info


This module has a user reversible front panel and its function is determined via jumpers on the back.

GR1 is a single channel randomizer with Gate and Reset inputs, as well as Momentary and Latching outputs.

Randomization is defined on the rising edge of the Gate input.

The Reset input is asynchronous and will force outputs to 0. As long as the Reset input is high, the Gate input will be inhibited, which can be handy to control when to allow the random signals to be generated.

µGR2 is a dual version, with a Gate input and a single output per channel.

Each channel’s output can independently set to Latching or Momentary via jumpers on the back. The output from the top channel is normalled to the next Gate input.

GR1 or µGR2 don’t have to be used with Gates only, and will respond to Triggers, Clocks, and can even be used with the square output of a VCO to create digital noise, like in vintage computers or arcade games.

Our hybrid 1U front panels use the dimensions as defined by Intellijel, and the open slots make these compatible with cases using the Pulp Logic format.

Our 1U modules use a standard IDC power connector.

Specifications
Width: 6hp
Depth: 35mm
Power: +35mA, -0mA

Manufacturer product page here.
Product manual here.
