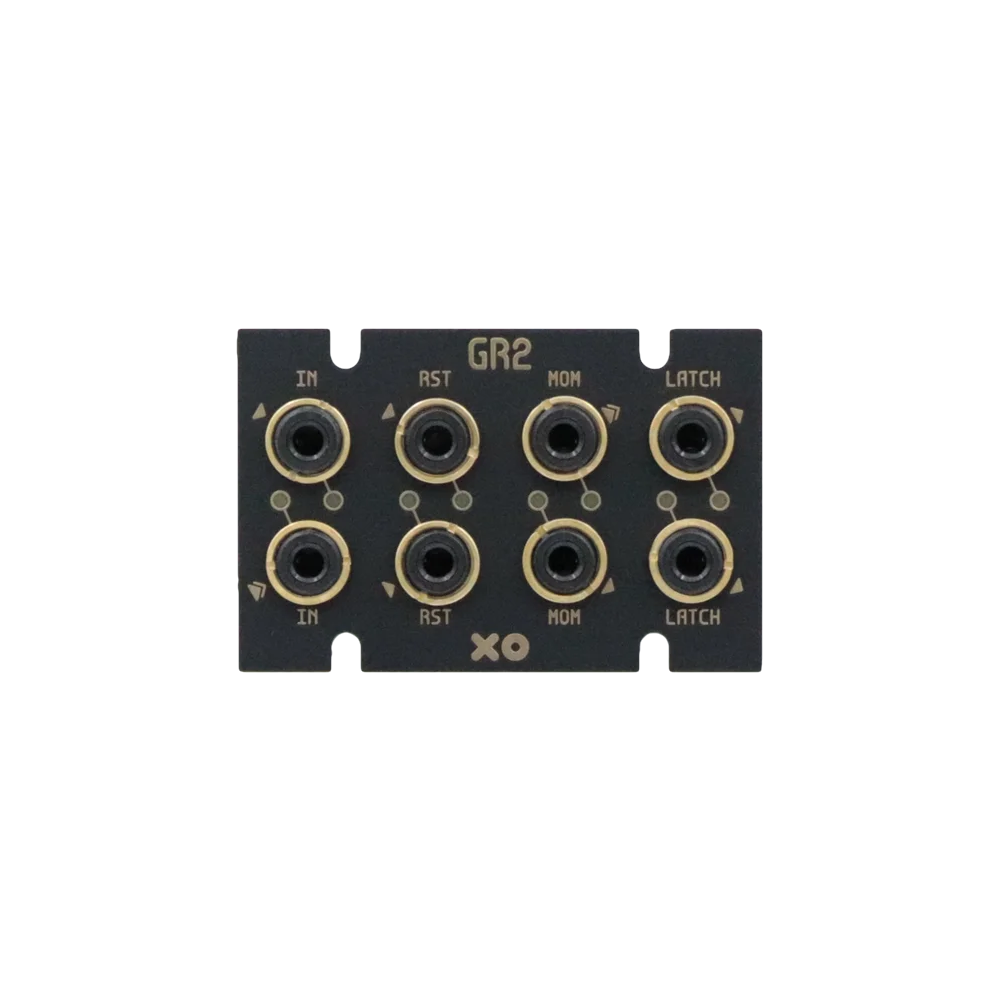

GR2 has 2 identical channels, with Gate and Reset inputs, as well as Momentary and Latching outputs.
Randomization is defined independently for each channel on the rising edge of the Gate input. The Momentary output of the top channel is normalled to the next Gate input, which allows generating 2 sets of random, yet synced signals.
The Reset inputs are asynchronous and will force outputs to 0. As long as the Reset input is high, the Gate input will be inhibited, which can be handy to control when to allow the random signals to be generated.
GR2 doesn’t have to be used with Gates only, and will respond to Triggers, Clocks, and can even be used with the square output of a VCO to create digital noise, like in vintage computers or arcade games.
Our hybrid 1U front panels use the dimensions as defined by Intellijel, and the open slots make these compatible with cases using the Pulp Logic format.
Our 1U modules use a standard IDC power connector.
Power: +50mA, -0mA
