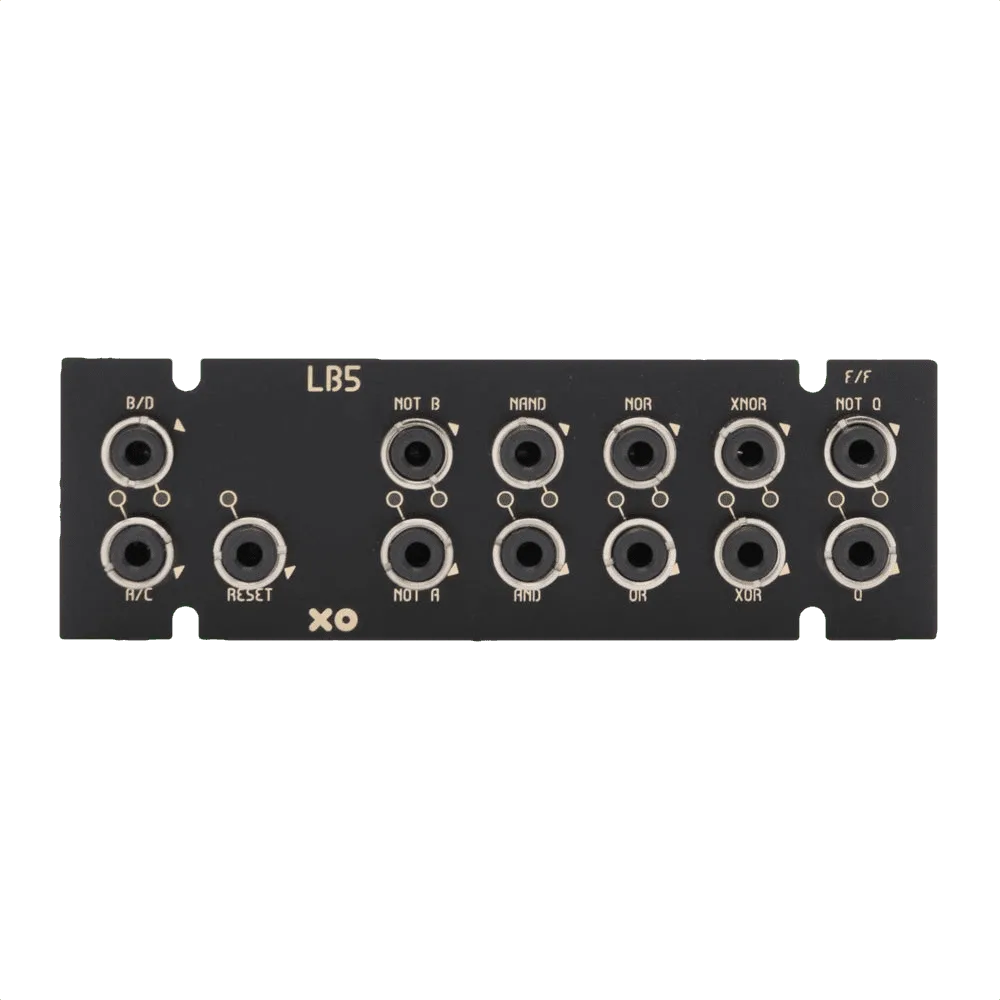

5 Logic Blocks
LB5 gives you simultaneous access to inverters, 2-inputs logic gates and their complementary outputs, as well as a flip-flop, which is the only block to make use of the Reset input.
Possible Uses
- Trigger manipulation
- Frequency divider
- Signal gating
- Turn anything into squares or streams
Specifications
Width: 5hp*
Depth: 30mm
Power: +50mA, -0mA
