Sometimes one may need a single Boolean logic gate. At least, this is what some of our customers requested!
Instead of making multiple modules for different functions, we made a 4-in-1 version.

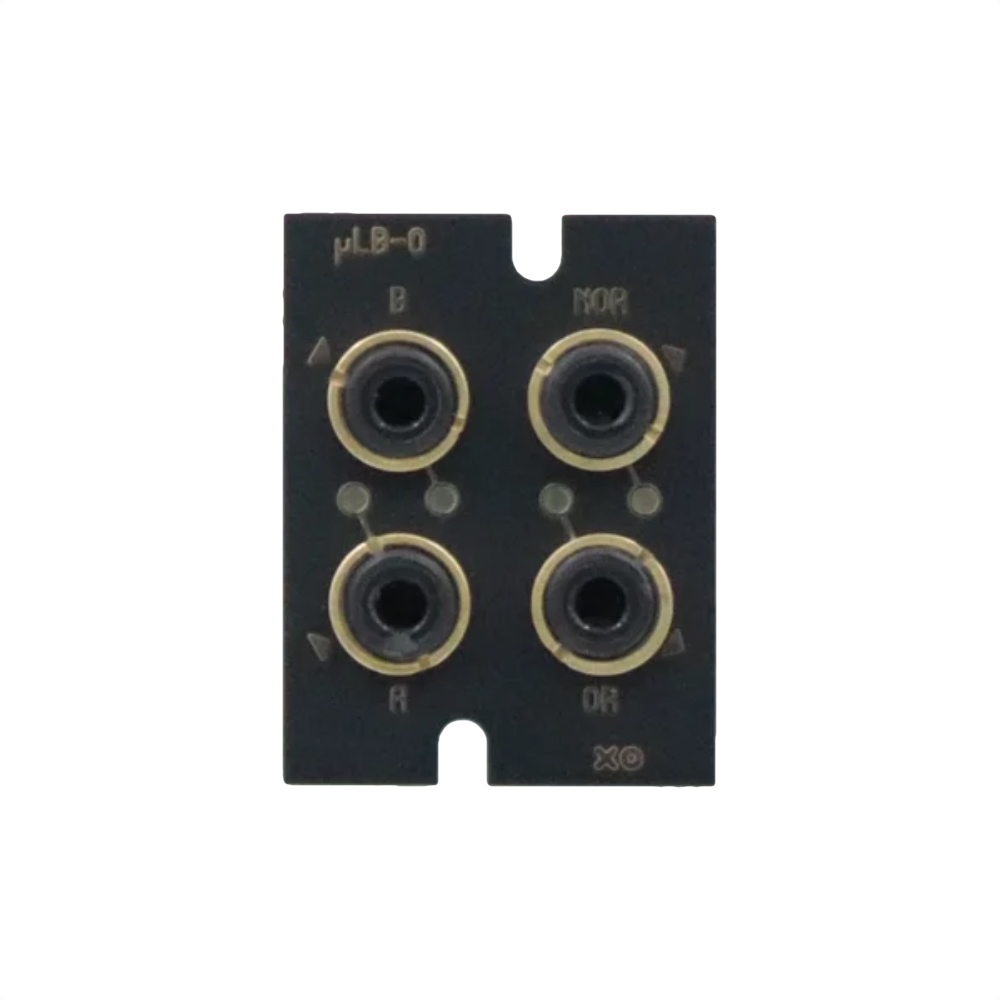

Even though we let you select which version you want to order, this module comes with 2 reversible panels. The function is selected with a DIP switch on the back, and can be set to (dual) NOT, AND, OR, XOR.
If you don’t have one already, we’d recommend getting the small tool we designed to accommodate with the smooth nuts we use!
The AND, OR, XOR modes also give access to their complementary signals referred as NAND, NOR, XNOR.
Our hybrid 1U front panels use the dimensions as defined by Intellijel, and the open slots make these compatible with cases using the Pulp Logic format.
Our 1U modules use a standard IDC power connector.
- Width: 6hp
- Depth: 35mm
- Power: +35mA, -0mA
