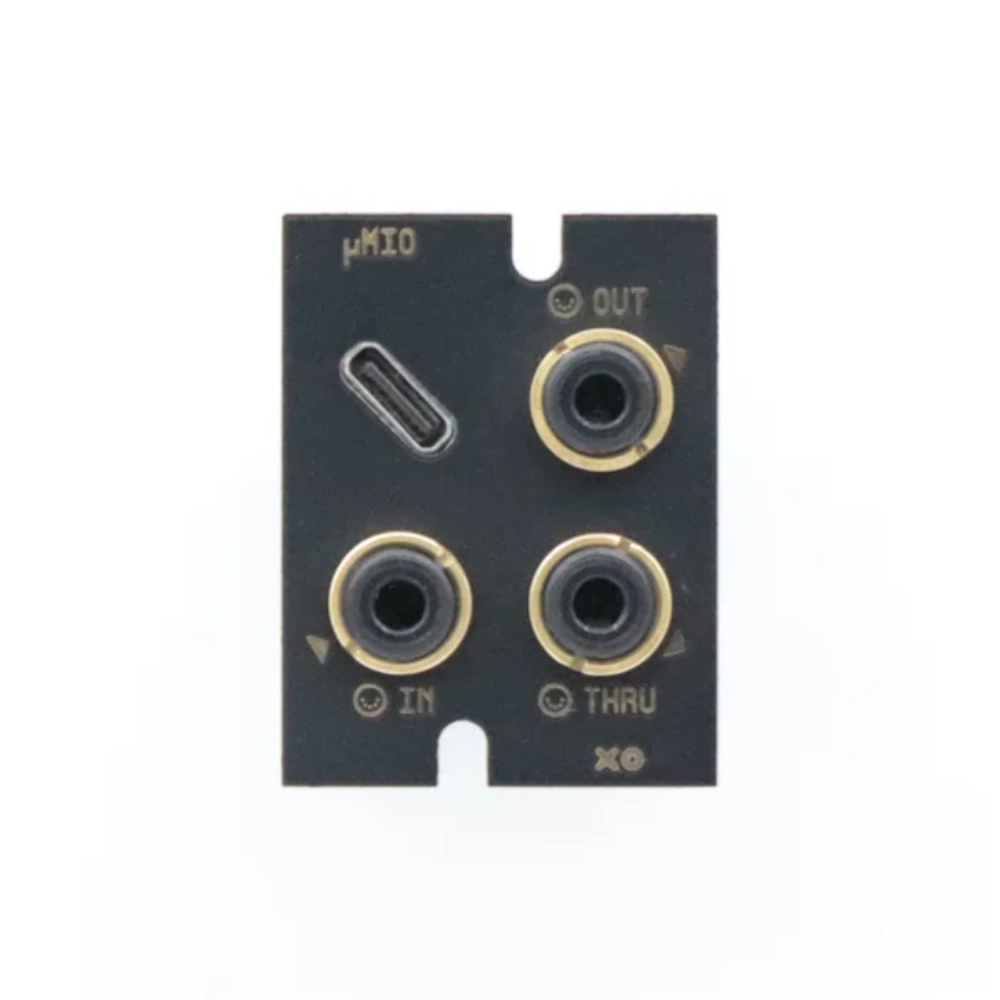

This interface connects to the Intellijel MIDI 1U module and gives access to the same I/Os as found on their 7U performance cases.
The USB-C connector should make it easier to use with tablets/phones.
The MIDI input works with both TRS-A and TRS-B devices or adapters without any user intervention.
The MIDI OUT and THRU sockets can be configured as TRS-A or TRS-B via 2 switches on the back.
Please refer to Intell?el’s documentation for any other information.
Our hybrid 1U front panels use the dimensions as defined by Intellijel, and the open slots make these compatible with cases using the Pulp Logic format.
Specifications
- Width: 6hp
- Depth: 35mm
- Power: Passive
