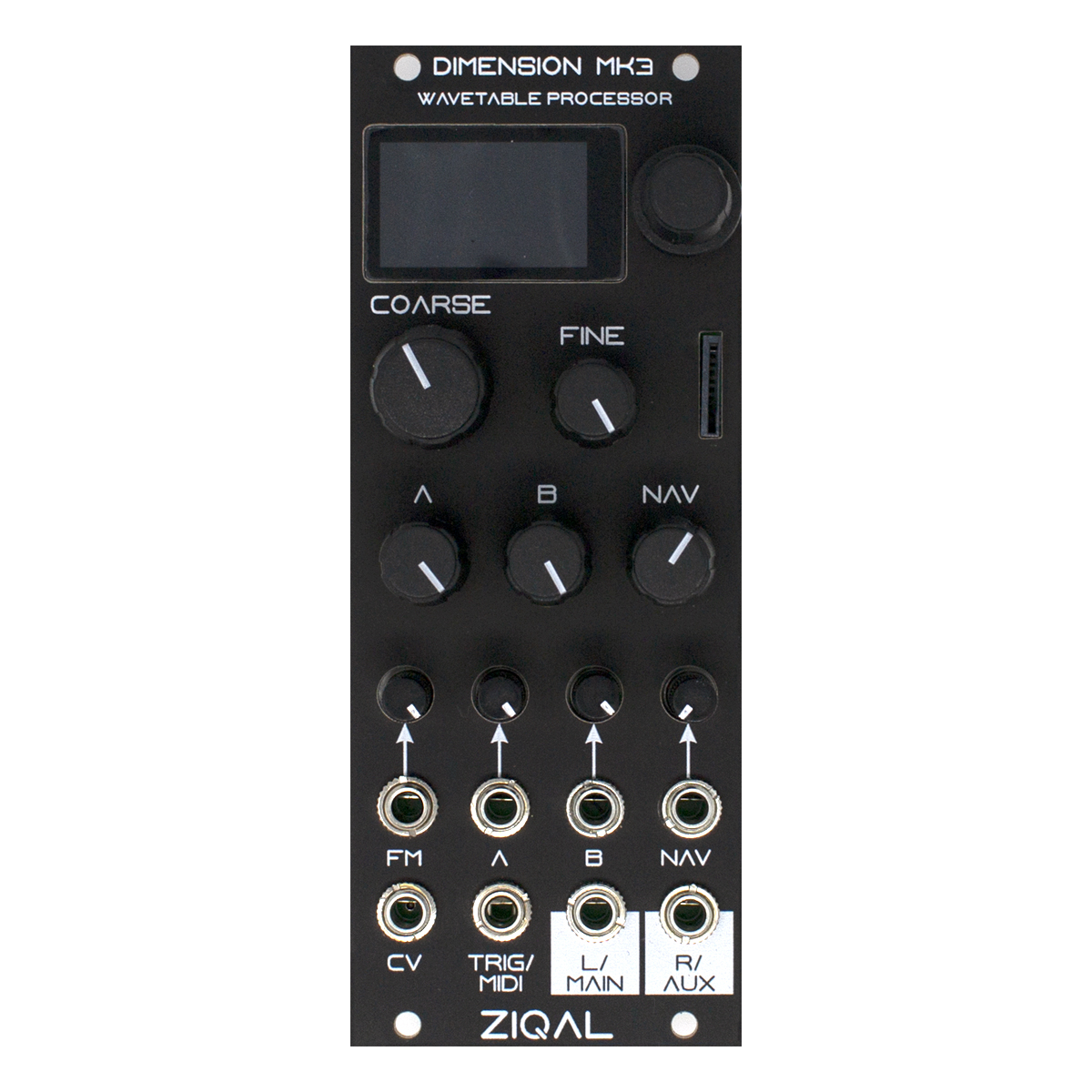

Ziqal Dimension Mk3 Eurorack Wavetable VC Oscillator Module

£359.00 inc. UK VAT

£299.17 ex. VAT

KLARNA Finance now available (£250-£1K)

Available on back-order

(Bear in mind prices on the UK site are shown including UK VAT. After entering your shipping address at checkout prices will update to show the correct taxes due to us based on your location. If purchasing internationally, VAT, handling fees, and import duties will potentially be due on delivery)

Product Info

The DIMENSION is a eurorack compatible, high quality and definition, digital audio oscillator. It brings to eurorack moderns wavetables oscillators technics with unprecedent computing power and flexibility in such small form factor. Its compatibility with computer world wavetables format standards and processing power gives your system access to endless new sonic textures and possibility’s.

24 voices
The Dimension oscillator is capable of playing not less than 24 voices simultaneously. The 24 Voices can be used to play programmed or scaled chords, unisons, dual oscillators, polyphonicaly, Unison or all togheter.

The DIMENSION is a OSC but can be used as a synth voice when needed. Four internal VCAs and ADSRs are available and can be activated to provide full four voices polyphony.

The Dimension wavetable engine uses 2048 samples * 256 waveforms wavetables to bring high definition tables to your system. Its wavetables reproduction precision allow to reproduce a wide range of sonic textures.

Dimension is compatible with the Serum and Vital wavetables formats and feature an intuitive and fast file browser, allowing you to explore thousands of availables wavetables. Just drop your favorites wavetables on a SD card, plug it into your DIMENSION and instantaneously start exploring new sonic territory.

The internal wavetable pool memory can store up to 25 wavetables. 128 patches can be stored and recalled instantenously in/from the internal memory. The 25 wavetables can be used freely in any of the 128 patches.

Session and module memory can backup/recall on/from the front panel micro-SD card

Dimension let you navigate and morph within wavetables but not only. The Navigation processor let you configure sets of wavetable to extend navigation Dimensions. You can now morpho accros all wavetables in memory.

You can real time twist, flip, streetch, Squeeze, fold, wavetable with the internal warp processor.

Aux (R) output can be used to output stereo audio but not only… Aux can be setup to output a seconday oscillator, an LFO clockable wavetable, or converted MIDI signal from input like ( Gate, Trig, CV, CC, … ).

The DIMENSION feature 3 macro modulation inputs ( A, B & NAV). Theses macro controls can be assign in each patch to any parameters or combinaison of parameters.


  • 32bit/44.1kHz
  • High resolution anti-aliasing filter
  • 128 internal patches
  • 25 wavetables pool
  • Full Internal memory backup/load from SD
  • 2048 samples per waveform
  • 1 to 256 waveforms per wavetable
  • Includes 4GB micro-SD Card with wavetable selection
  • Included MIDI-TRS A MIDI Cable


  • Width: 10hp
  • Depth: 27mm
  • Power: +100mA / -15mA

Manufacturer product page here.
